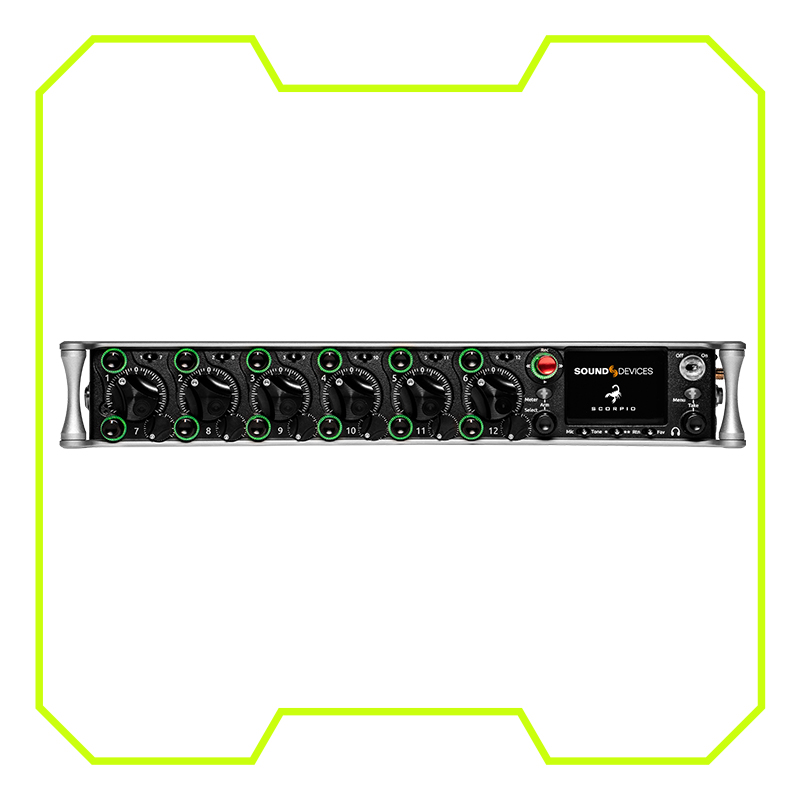

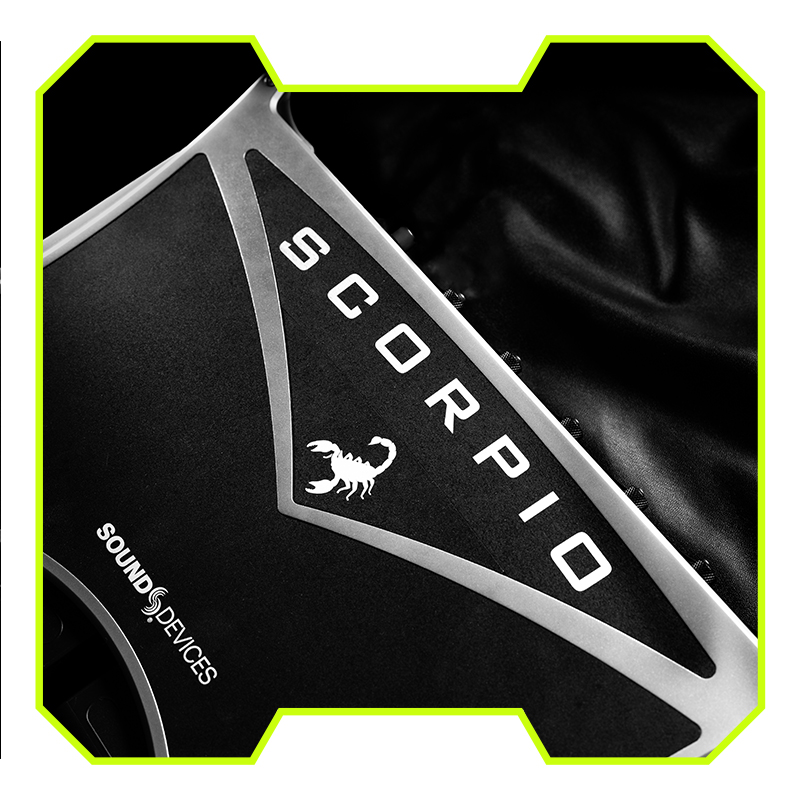

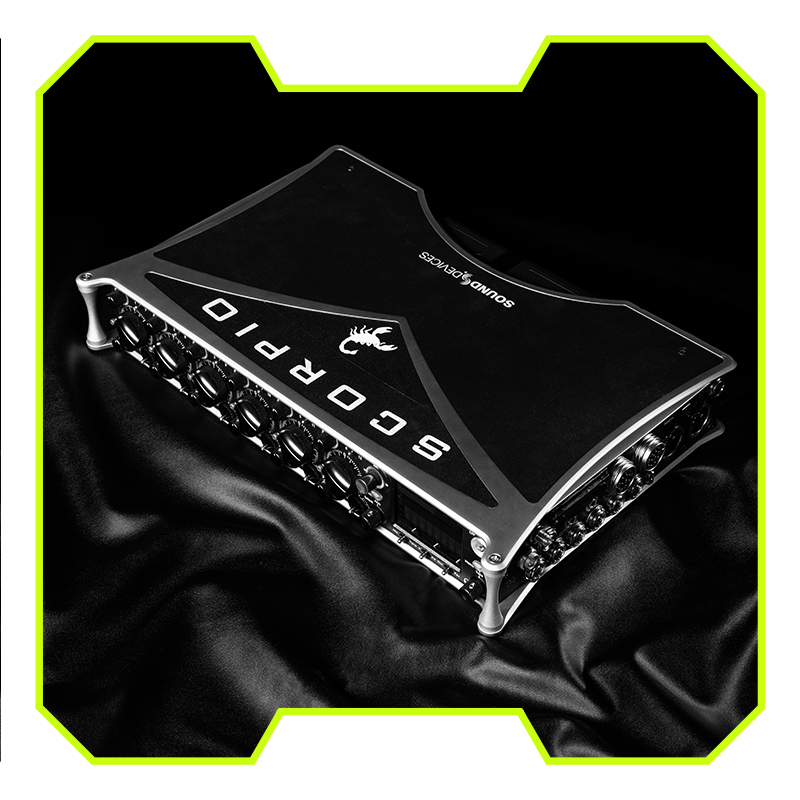

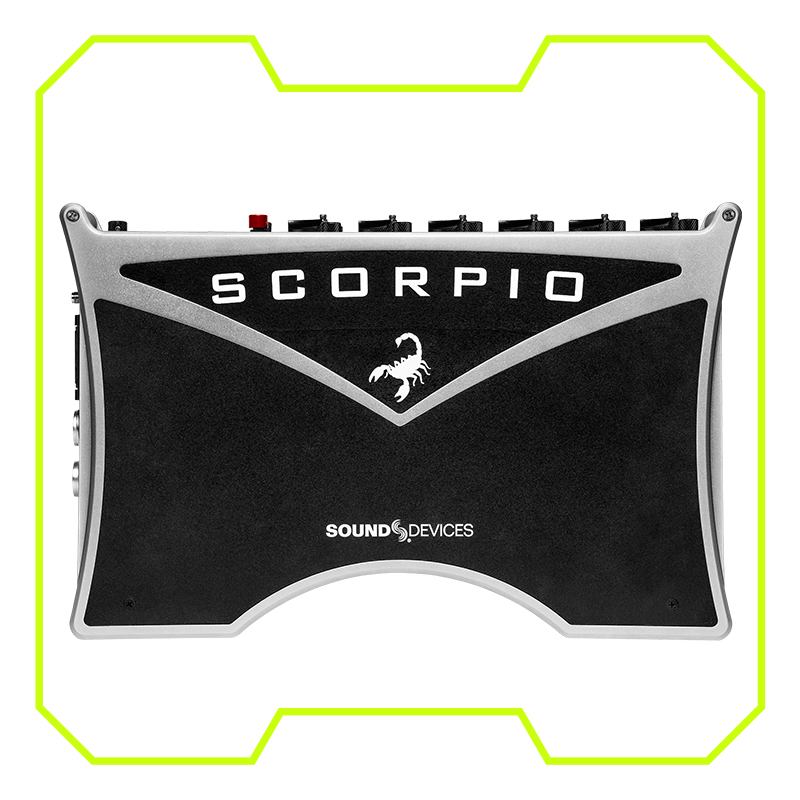

Scorpio

Description

With 16 mic/line preamplifiers, 32 channels of Dante in and out, AES in and out, 12 analog outputs and multiple headphone outputs, Scorpio is well-suited for any production scenario. A fully customizable routing matrix enables sound professionals to send any input to any channel, bus, or output. Up to 12 buses may be individually mixed. Due to its compact form factor, the Scorpio is equally at home over the shoulder or in a mobile rig.

Since its release in April 2019, Scorpio has received the 56th CAS Outstanding Product in Production Award, the 2020 AMPS Excellence in a Production Audio Project Technical Award, PSNEurope Best of Show Award at IBC2019, Editor’s Choice 2019 Award from Professional Audio, and Resolution Magazine Award for Best Recorder, 2019.

Scorpio incorporates Sound Devices’ most cutting-edge technology. An ultra-powerful engine comprised of three FPGA circuits and six ARM processors delivers the horsepower needed for the most complex tasks. FPGA-based audio processing with 64-bit data paths ensures the highest sound quality and reliability. The Scorpio also features Sound Devices’ latest and best in analog microphone preamplifier design. These preamps have the smoothest sound and lowest noise of any preamp in the company’s 20-year history and include built-in analog limiters, high pass filters, delay, 3-band EQ and phantom power.

Overview

• Eight ultra-low-noise Kashmir microphone preamps with adjustable limiters capture high-quality audio in the field, on set, or with a computer.
• Create a mix using the built-in 10 x 4 portable mixer.
• Record up to 12 tracks to an SD card and back up to a USB thumb drive.
• 12-in, 4-out USB audio interface streams to your computer via USB-C at bit depths up to 32-bit float.
• Choose bit depths from 16 to 32-bit float, and sampling rates from 44.1 kHz to 192 kHz.
• Internal LTC timecode generator. Timecode In/Out via BNC or Aux In/Stereo Out.
• Timecode and record triggering via HDMI.
• USB-A for control surfaces, keyboards, and auto-copy to USB drive.
• In-unit ISO mixing, gain, pan, low-cut, phase inversion, and phantom power.
• Sunlight-readable color touch screen and LED metering.
• Lightweight, durable, and small: perfect for bag use, mobile recording, or a home studio.
• Powerful 300 mW+300 mW headphone amp allows clear and accurate reference of audio.

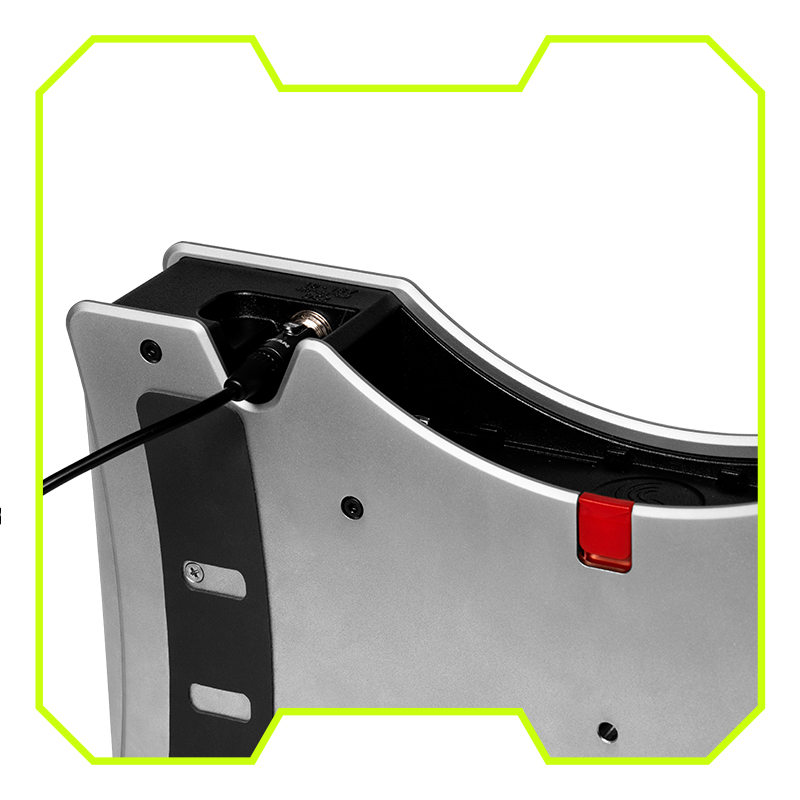

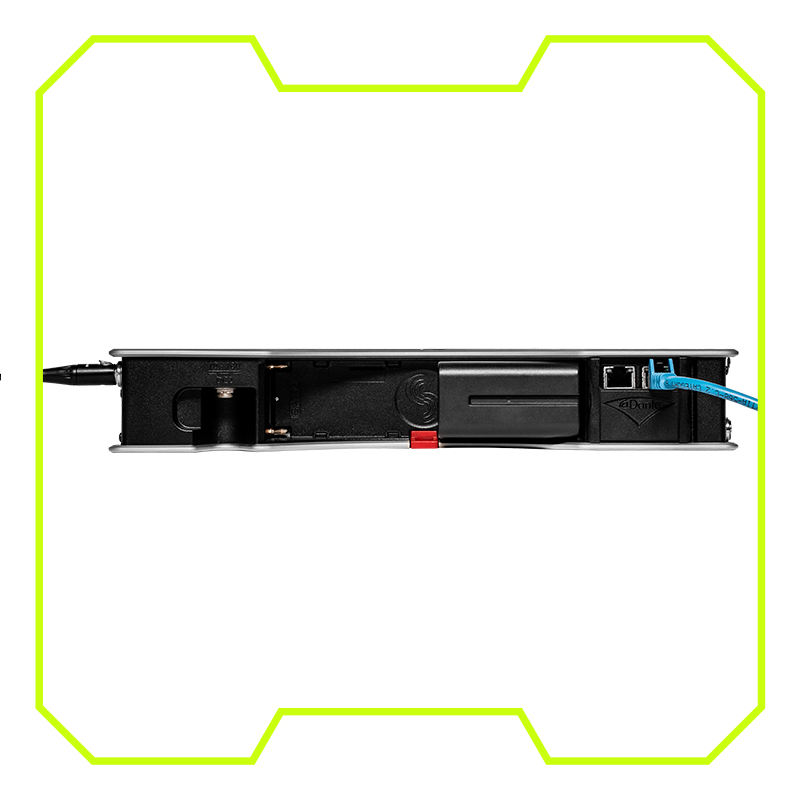

• Includes a MX-8AA Battery Sled (batteries not included), XL-WPH3 AC Power Supply, and USB-C to USB-C cable.
• Customize with plugins from the Plugin Store.
